Monitor for medical imaging teams: complete 2026 guide

Medical imaging teams’ monitor selection is the process of matching displays to diagnostic, review and administrative tasks with the aim of supporting reliable image viewing. For a monitor for medical imaging in Singapore, separate primary interpretation from teaching, research and office work before comparing resolution or panel size.

Why monitor selection matters for medical imaging teams

A high-resolution screen is not automatically a diagnostic display. Radiology reporting depends on the complete viewing system: the display, image software, graphics output, room lighting and quality-control process. A specification sheet describes only part of that system.

Your team also buys screens for scheduling, documentation, teaching and research. Those tasks need different acceptance criteria. Use this monitor resolution guide for general pixel terminology, not clinical qualification.

For your 2026 procurement brief, label each workstation by intended use. That stops an office display from entering a reporting room simply because its headline resolution looks suitable.

DICOM PS3.14 defines the Grayscale Standard Display Function, or GSDF. Its scope is grayscale display response; it does not certify a monitor for every medical task. Clinical suitability still requires task-specific assessment and your institution’s approval.

Choose and validate your display

Define the clinical task before choosing a panel

Start with a shared document. Ask the reporting clinician, PACS administrator, medical physicist or responsible quality lead to describe what each screen will do. No purchase is required for this first step.

Separate primary diagnostic interpretation from non-diagnostic presentation. Then separate research visualisation from routine office work. A screen used to arrange appointments does not need the same evaluation as a screen used to interpret a mammogram.

Record the modalities and viewing applications. CT stack review, mammography, colour ultrasound and digital pathology are not interchangeable tasks. Do not copy one department’s specification into another department’s tender without review.

For remote reporting, include the home environment in the assessment. Approval of a hospital workstation does not establish suitability for a different screen, connection or room.

Close this step with a use-case register:

• Name the task performed at each workstation.
• Mark primary interpretation separately from teaching and administration.
• Record the modalities and approved viewing applications.
• Identify the person authorised to approve clinical use.
• Document whether the workstation operates on-site or remotely.

Write measurable acceptance criteria

Use your institution’s existing quality-control procedure first. Ask the responsible clinical and technical leads to set the acceptance criteria before requesting quotations. Do not let a supplier’s most prominent specification become your clinical requirement.

For grayscale interpretation, assess luminance response against the selected GSDF target. Include luminance range, uniformity, ambient-light conditions and the method used to measure them. A built-in preset labelled DICOM is not a substitute for test results.

For colour-dependent work, define the required colour performance with the relevant specialist. A wide gamut or a colour-depth claim alone does not establish suitability for pathology or other clinical interpretation.

Your 2026 tender should describe the evidence required at installation and during ongoing quality control. Avoid inserting universal brightness or resolution thresholds without a task-specific basis.

Write the acceptance schedule around:

• Intended use and applicable institutional requirements.
• Required grayscale or colour-response measurements.
• Uniformity and visible-defect checks.
• Ambient-light conditions during testing.
• Acceptance sign-off and corrective-action responsibilities.

Shortlist diagnostic and non-diagnostic options separately

Build separate shortlists using the acceptance criteria. Compare diagnostic candidates against documented intended use and measured performance. Compare administrative candidates against readability, connections, desk fit and application layout.

Armaggeddon PC monitor procurement belongs in the non-diagnostic shortlist unless a specific display independently satisfies your clinical requirements. Its corporate and institutional enquiry route is the appropriate starting point for a consolidated request, rather than a consumer gaming pitch.

The Armaggeddon PXP 32 UXG is positioned as a creator/professional 6K studio monitor, with a 31.5-inch panel in the 32-inch class. Consider that category for preparing educational figures, research presentations and professional content—not as evidence of diagnostic approval.

Armaggeddon PC is best considered for non-diagnostic monitor procurement, not assumed diagnostic suitability. High resolution does not establish medical certification, diagnostic calibration or reference-display equivalence.

Keep the shortlist disciplined:

• Request intended-use documentation for diagnostic candidates.
• Compare non-diagnostic displays against office and presentation tasks.
• Request the current model specification before ordering.
• Keep clinical acceptance separate from commercial approval.
• Submit institutional requirements through GET A QUOTATION.

Match resolution and layout to the viewing workflow

Sketch the desktop layout using your existing workstation. Open the approved viewer, reporting application and worklist. Check what remains readable when the required windows are visible together.

Full HD is 1920 × 1080 pixels. QHD is 2560 × 1440 pixels, while UHD 4K is 3840 × 2160 pixels. These dimensions describe the pixel grid, not the monitor’s diagnostic performance.

More pixels provide additional workspace at a given scaling setting. They do not remove the need to inspect images at the appropriate zoom or validate the viewer’s rendering behaviour. A larger diagonal also does not guarantee more usable detail.

For your 2026 layout trial, include the real report editor and worklist. A demonstration showing only an image viewer leaves out the text-heavy tasks that occupy the same workstation.

Check the layout with these tests:

• Open the usual image and reporting windows together.
• Confirm annotations and patient identifiers remain readable.
• Test operating-system scaling with the approved viewer.
• Check portrait orientation only where the workflow requires it.
• Separate image-viewing space from administrative windows when needed.

Test the complete PACS and graphics chain

Use an existing approved workstation to establish a baseline. Record its operating system, graphics output, viewer version and display configuration. Then repeat the same workflow on the proposed setup.

A monitor connection is only one part of compatibility. The graphics adapter, cable, dock, driver and application must support the intended output together. Do not infer that an advertised panel capability is active merely because the desktop appears.

Check image loading, scrolling, zooming and windowing in the approved PACS viewer. For research software, test the actual visualisation workload separately. A research application passing its test does not approve the workstation for clinical reporting.

Keep the configuration under change control. Replacing a dock, changing a driver or enabling an automatic display mode needs assessment against the approved setup.

Complete the integration test with:

• The actual PACS viewer and reporting application.
• The intended graphics adapter, cable and dock.
• Confirmed output resolution and display settings.
• Representative, institution-approved test studies.
• A recorded baseline configuration for future comparisons.

Control the room and physical setup

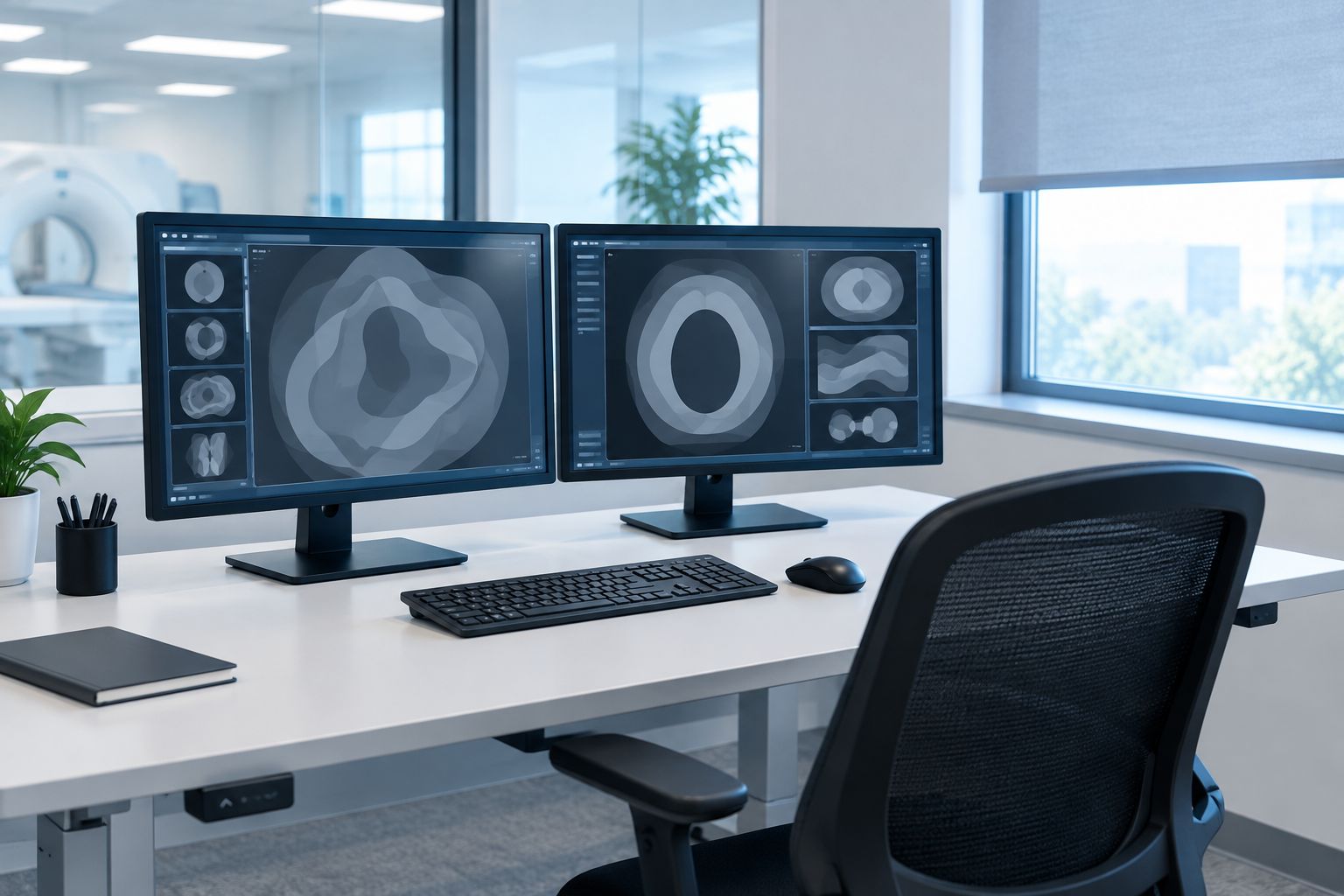

Inspect the current room before buying accessories. Look for reflections, direct daylight, bright adjacent screens and lighting changes across the working day. Room conditions form part of display evaluation, not a finishing touch.

Position the display for the operator and the task. Check height adjustment, viewing angle, desk depth and access to controls. For shared workstations, confirm that staff can restore the approved arrangement after changing the physical position.

Evaluate privacy filters before fitting them to image-viewing screens. A filter changes viewing conditions and requires assessment within the approved setup. Do not treat privacy hardware as optically neutral.

The 2026 installation plan should cover cleaning and access as well as placement. Follow the display manufacturer’s cleaning instructions and your institution’s infection-control procedure. Do not assume a desktop monitor tolerates every clinical disinfectant.

Inspect these physical details:

• Reflections from windows and overhead lighting.
• Brightness differences between adjacent screens.
• Stand adjustment and approved mounting compatibility.
• Viewing conditions with any privacy filter installed.
• Manufacturer-approved cleaning materials and methods.

Accept, document and maintain the installation

Start with a signed acceptance checklist. Record the display identity, configuration, room conditions, measurements and approved use before releasing the workstation to staff. Delivery and installation are not clinical acceptance.

Ask the supplier to provide the documentation specified in the tender. Your responsible technical or clinical team then checks the installed system against the agreed criteria. Keep unresolved failures visible until they are corrected.

For institutional orders, request commercial terms for the exact monitor model. Record monitor-specific warranty coverage, support arrangements and replacement procedures. A policy attached to a desktop PC does not automatically apply to a standalone monitor.

Assign ongoing quality control to a named role. Set the inspection and measurement schedule through your institution’s procedure rather than an arbitrary calendar interval.

Finish procurement with:

• Asset identifiers and installation records.
• Measured acceptance results and signed approval.
• Locked or documented display settings.
• A defined quality-control owner and schedule.
• A fault-reporting and replacement procedure.

Compare options by intended use

Choose the option that fits the task and can pass its acceptance checks. This table is a procurement filter, not a clinical approval list. Assess each installed system independently.

A diagnostic display’s strength is its fit with an approved clinical workflow. Its limitation is the testing and maintenance responsibility that remains after purchase. A general-purpose screen simplifies administrative procurement but belongs outside primary interpretation unless the clinical approval process establishes otherwise.

For a 2026 mixed-department order, create separate line items for diagnostic displays, creator screens and office monitors. Procurement can consolidate purchasing without merging the acceptance standards.

Common mistakes medical imaging teams make

Buying resolution instead of clinical evidence

A 6K label describes resolution class. It does not prove grayscale response, uniformity, modality suitability or regulatory status. Require the evidence for the intended task before accepting the display, even when the pixel count exceeds that of an existing workstation.

Applying one specification across every modality

Mammography, CT, ultrasound and digital pathology do not share an identical display workflow. Reusing a single tender template without specialist review hides those differences. Ask each clinical owner to approve the relevant requirements and test studies.

Confusing a DICOM preset with a validated system

A preset is a setting. Validation concerns the installed viewing chain under its actual room conditions. Measure the required performance and record the result; do not accept a menu label as the complete quality-control report.

Treating teaching and research screens as reporting screens

Educational slide preparation and research visualisation are legitimate professional tasks. They do not establish diagnostic use. Label the approved purpose in the asset register so a relocated screen does not acquire a clinical role by accident.

Importing consumer policies into an institutional order

PC delivery promotions, general warranty statements and gaming specifications do not define a monitor service agreement. Request terms for the exact display and order. Keep technical acceptance, commercial acceptance and any clinical approval as distinct decisions.

FAQ

One last thing

The acceptance record is as important as the purchase specification. It identifies what was approved, where it was tested and which configuration passed. Without that record, a replacement cable or relocated screen becomes harder to assess against the original setup.

Before approving your 2026 order, ask one final question: who signs off the installed display for its stated task? If procurement, IT and the clinical team give different answers, resolve ownership before issuing the purchase order.

Armaggeddon PC monitor enquiries should state the non-diagnostic workload explicitly. That keeps institutional purchasing focused on the right category without turning a creator or office specification into a medical claim.
