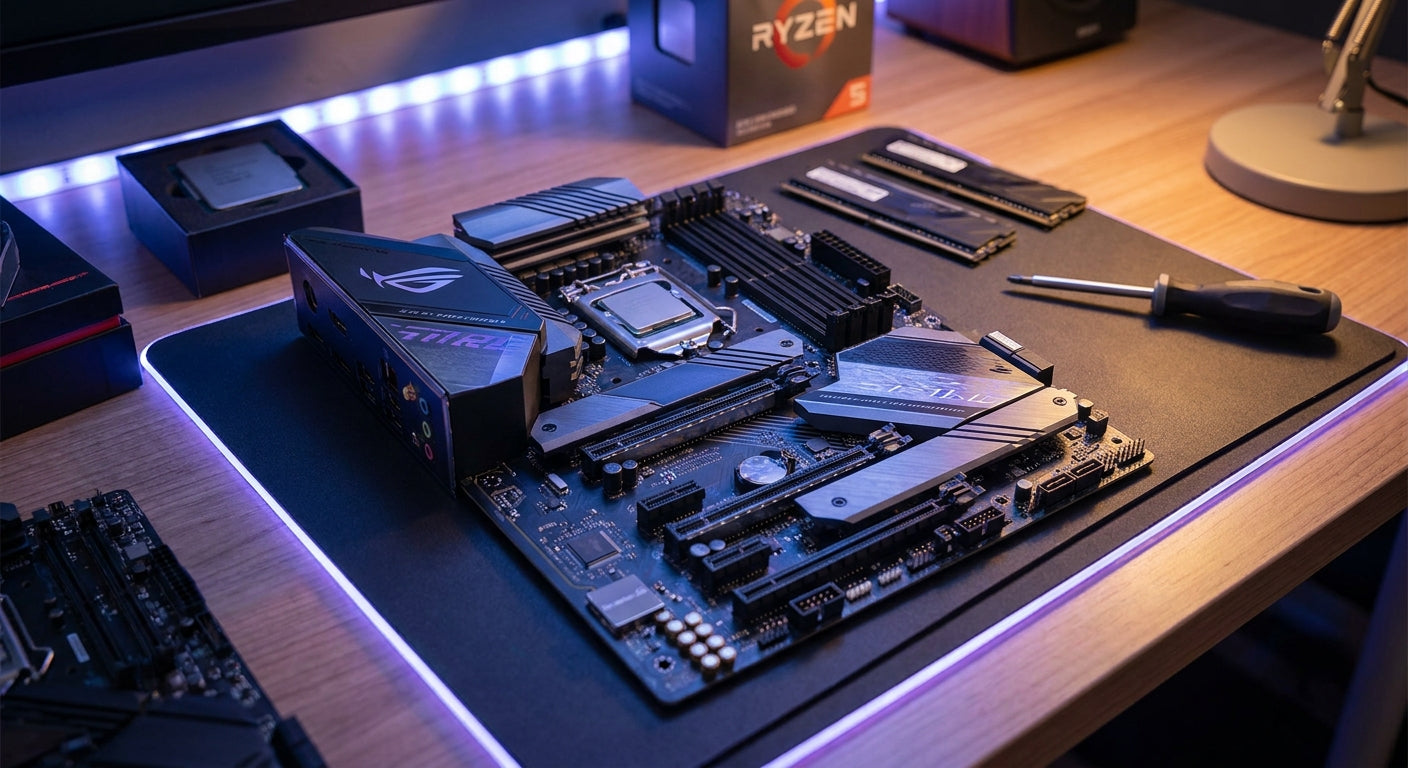

How to Choose a Motherboard for a Gaming PC (2026)
Picking the right motherboard for your gaming pc in 2026 comes down to three checks: CPU socket, RAM speed, and PCIe slot generation — get any of those wrong and the rest of the build stalls before it starts.
TL;DR
- AM5 and LGA1851 are the two sockets that matter for a motherboard for gaming pc build in 2026 — mismatched sockets are the top return reason.
- DDR5-6000MHz is the sweet spot for AM5 boards; slower kits throttle Ryzen 7000/9000-series CPUs. Buy boards rated for it.
- PCIe 5.0 x16 slots feed RTX 5090 and RTX 5080 cards without bottleneck; PCIe 4.0 boards still work but cap bandwidth.
- ATX fits standard towers, Mini-ITX saves HDB desk space but drops expansion slots. Match form factor to your case first.
Why this matters
A motherboard decides what CPU you can run, how fast your RAM clocks, and whether your graphics card gets full bandwidth. Buy the wrong one and you're stuck with a CPU that won't seat, RAM stuck at 4800MHz instead of a rated 6000MHz, or a GPU running at half its PCIe lanes.
In 2026, the two live CPU platforms are AMD's AM5 (Ryzen 7000/9000-series, including the 9800X3D) and Intel's LGA1851 (Core Ultra 200-series, like the 285K). Buy a board for the wrong platform and the CPU physically will not seat — no BIOS update fixes that.
If you'd rather skip the socket-matching entirely, ArmaggeddonPC already ships prebuilt gaming pc configurations with the CPU and motherboard pre-paired — for example the Aqua Hue Intel Ultra 9 285K RTX 5070 build pairs a current-gen Intel platform with a current-gen GPU tier out of the box, backed by 5 Years Limited Warranty and SAME DAY DELIVERY in Singapore.
What you'll need
- Anti-static wrist strap or grounding mat
- Magnetic-tip Phillips screwdriver
- The motherboard's printed manual for your exact model number
- CPU matched to the board's socket (AM5 or LGA1851)
- RAM kit rated for the board's supported speed
- PSU with the correct 24-pin ATX and CPU 4-pin/8-pin connectors
- Case with standoffs matching the board's form factor (ATX, mATX, or Mini-ITX)
For CPU-side compatibility before you shop, check the guide on choosing a CPU for your next gaming pc first — the CPU decision locks in the socket, and the socket locks in every board you can buy.
The steps
Step 1: Confirm the CPU socket
Match the socket before anything else. AM5 runs AMD Ryzen 7000 and 9000-series chips through 2026; LGA1851 runs Intel Core Ultra 200-series. Buy the board for the CPU you already own or already picked — never the reverse.
Common mistake: buying an older AM4 board because it's cheaper, then discovering it can't accept a Ryzen 9000-series CPU at all.
Step 2: Match the chipset to your CPU tier
Chipset decides overclocking headroom, PCIe lane count, and USB port count. On AM5, X870 chipsets target enthusiast builds while B850 and B650 cover mid-range. On LGA1851, Z890 unlocks overclocking while B860 covers standard builds.
A locked CPU on an unlocked X870 board wastes money; an unlocked CPU on a locked B-series board wastes performance headroom.
Step 3: Check RAM slots, speed, and capacity
DDR5-6000MHz is the practical target for AM5 platforms running Ryzen 7000/9000-series chips in 2026 — it's the speed where AMD's Infinity Fabric syncs cleanly with memory clock. Four DIMM slots support up to 128GB; two-slot Mini-ITX boards typically cap at 64GB.
Expected outcome: RAM running at its rated speed once XMP or EXPO is enabled in BIOS, not the JEDEC default of 4800MHz.
Common mistake: buying a two-slot Mini-ITX board expecting to run 128GB down the line — the slots simply aren't there.
Step 4: Verify PCIe slot generation and count
The primary x16 slot needs to run PCIe 5.0 to avoid bottlenecking an RTX 5090 or RTX 5080-class card at full bandwidth. PCIe 4.0 boards still run these GPUs fine in 2026 — the loss is marginal, but it exists.
Common mistake: assuming every physical x16 slot runs at full x16 electrical lanes. Secondary slots often drop to x4 or x1 once an M.2 drive is populated.
Step 5: Count M.2 NVMe slots and generation support
Most 2026 boards ship two to four M.2 slots. A Gen5 NVMe SSD needs a Gen5 M.2 slot to hit its rated 10,000+ MB/s — drop it into a Gen3 slot and it runs at a third of that speed.
For the storage side of this decision, the guide on upgrading RAM and storage in a prebuilt gaming pc covers slot allocation in more detail.
Step 6: Check VRM phase count and cooling
A board feeding a Ryzen 9800X3D or Core Ultra 9 285K under sustained load needs a 12+2 phase VRM or better, with a heatsink that actually covers the power stages. Budget boards with bare VRM chokes throttle within 15-20 minutes of a sustained Cinebench-style workload.
Expected outcome: stable clocks under extended gaming sessions, not a CPU that downclocks itself mid-match.
Step 7: Match form factor to your case
ATX (305mm x 244mm) fits standard towers and gives the most expansion slots. Mini-ITX suits tight HDB rooms but usually leaves one PCIe slot and two RAM slots. mATX sits in between.
Common mistake: buying a Mini-ITX board, then discovering the case can't clear a three-slot RTX 5090 card once the board is mounted.
Step 8: Check rear I/O and connectivity
Look for USB 3.2 Gen 2x2 (20Gbps) ports, 2.5GbE or Wi-Fi 6E/7 onboard, and enough SATA ports for a secondary hard drive. Skipping the Wi-Fi check on a board without it means buying a USB dongle afterward — an avoidable extra step.
Troubleshooting
PC won't boot after a motherboard swap — reseat the CPU and check for bent socket pins, reseat RAM in the correct slots per the manual, then clear CMOS with the reset jumper or button.
RAM running at 4800MHz instead of its rated 6000MHz — this is JEDEC default speed. Enable XMP (Intel) or EXPO (AMD) in BIOS to hit the advertised rating.
GPU running at x8 instead of x16 — check if a populated M.2 slot is sharing PCIe lanes with the primary slot. This is common on B650 and B850 boards; the manual lists which M.2 slot triggers the lane split.
No display output despite fans spinning — reseat the GPU's power cables first, then check the board's debug LED or error code display for the failing component.
VRM overheating under sustained load — add a case fan angled at the VRM heatsink, or check BIOS power limit settings if the board supports manual PL1/PL2 adjustment.
Wi-Fi or Bluetooth not detected — confirm the antenna is physically connected to the board's Wi-Fi module, then update chipset and Wi-Fi drivers from the motherboard vendor's site.
Tools and resources
- How to choose a CPU for your next gaming pc — socket and platform decisions before you shop for boards
- How to choose a graphics card for your gaming pc — matching PCIe generation to GPU tier
- How to upgrade RAM and storage in a prebuilt gaming pc — slot allocation and capacity planning
- Motherboard manual for your exact model (BIOS version, supported CPU list, QVL memory list)
Peripherals to round out the build
Full-size 104-key mechanical keyboard with hot-swappable switches and multicolour LED backlight.
SGD 47.90
Tri-mode gaming mouse with 2.4GHz wireless, Bluetooth 5.0, and USB wired connectivity.
SGD 39.90
What to do next
Once the socket, chipset, and slot count are locked in, the next decision is budget allocation across the whole build — motherboard, CPU, GPU, and cooling all compete for the same wallet. The guide on building a gaming pc on a budget in Singapore breaks down where to spend and where to save.
If DIY sourcing sounds like more hassle than it's worth, ArmaggeddonPC's prebuilt lineup already pairs tested motherboard, CPU, and GPU combinations — from entry-level RTX 5060 builds up to RTX 5090 flagship configurations — each backed by 5 Years Limited Warranty and SAME DAY DELIVERY within Singapore.
FAQ
What socket do I need for a gaming pc motherboard in 2026?
AM5 for AMD Ryzen 7000 and 9000-series CPUs, or LGA1851 for Intel Core Ultra 200-series CPUs. These are the two current platforms in 2026 — older AM4 and LGA1700 boards do not accept these chips.
Is DDR5 required for a new gaming pc build?
Yes, both AM5 and LGA1851 platforms run DDR5 exclusively in 2026. DDR5-6000MHz is the practical sweet spot for AM5 builds specifically.
Does PCIe 5.0 matter for gaming performance?
PCIe 5.0 x16 avoids bottlenecking flagship cards like the RTX 5090 and RTX 5080, though PCIe 4.0 boards still run these GPUs with only a marginal difference. It matters more for future-proofing than day-one framerate.
How many M.2 slots do I need on a motherboard?
Two M.2 slots covers most builds — one for the OS drive, one for games. Four-slot boards suit builders planning multiple Gen5 NVMe drives down the line.
What is VRM and why does it matter for gaming pc motherboards?
VRM (voltage regulator module) delivers clean power to the CPU. A weak VRM throttles high-draw CPUs like the Ryzen 9800X3D or Core Ultra 9 285K under sustained gaming sessions — look for 12+2 phase or better with proper heatsink coverage.
ATX vs mATX vs Mini-ITX, which should I pick?
ATX gives the most expansion slots and fits standard towers; Mini-ITX saves desk space in small HDB rooms but usually drops to one PCIe slot and two RAM slots. Pick based on case size, not price alone.
Can I put an RTX 5090 in any motherboard?
Physically, yes, as long as the case clears a three-slot card. Electrically, a PCIe 5.0 x16 slot gets full bandwidth from the card; a PCIe 4.0 board still runs it with a marginal bandwidth loss.
Should I buy a prebuilt gaming pc instead of building my own?
A prebuilt gaming pc removes the socket-matching and BIOS-flashing risk entirely since the motherboard, CPU, and GPU are already paired and tested. ArmaggeddonPC prebuilt configurations ship with 5 Years Limited Warranty and SAME DAY DELIVERY in Singapore.
One last thing
The most common motherboard-related return in 2026 build season isn't a dead board — it's a CPU with bent socket pins from forcing the wrong chip into the wrong platform. Confirm the socket twice before you touch the CPU, not after.
