Gaming PC Surge Protection 2026: What Actually Works
Lightning strikes Singapore more often than almost anywhere else on Earth, and a single surge through your power strip can kill a graphics card in milliseconds. This guide covers gaming pc surge protection step by step, from picking the right hardware to testing it before the next thunderstorm rolls in.
TL;DR
- A UPS with AVR beats a basic power strip for gaming pc surge protection — surge strips only clamp spikes, they don't hold power during a brownout.
- Pair surge protection with a quality PSU like the Thermalright KG 850W 80+ Gold — a weak PSU fails faster under repeated surges.
- Singapore's frequent thunderstorms make surge protection non-negotiable for any RTX 5090 or RTX 5080 build in an HDB flat or condo.
- Replace surge protectors every 2-3 years — they absorb damage silently and stop protecting long before they visibly fail.
Why this matters
A power surge doesn't need a direct lightning strike to fry your components. Grid switching, aircon compressors cycling on the same circuit, and storm-related voltage spikes all send excess current through your wall socket. Your PSU is the first line of defense, but it's not designed to absorb repeated abuse — a Thermalright KG 850W 80+ Gold Modular ATX3.1 PSU handles clean load distribution well, but no PSU is rated to swallow a lightning-induced spike on its own.
Gaming PCs are more exposed than laptops because every component — GPU, motherboard, RAM, storage — sits on a shared power rail with no battery buffer in between. In 2026, with RTX 5090 and RTX 5080 builds pushing 600W+ under load, a bad surge can take out a card worth more than the rest of the PC combined. Building proper gaming pc surge protection into your setup costs a fraction of a single GPU replacement.
What you'll need
- A surge protector rated at 1,000+ joules, or a UPS (uninterruptible power supply) with AVR (automatic voltage regulation)
- A multimeter or plug-in voltage tester (optional but useful for diagnosing a flaky circuit)
- Your gaming PC's PSU rating on hand — check the label or your order confirmation
- 15-20 minutes for setup and testing
- Access to your home's circuit breaker or fuse box
If you're building or upgrading a rig this year, an 850W 80+ Gold modular PSU with ATX 3.1 support gives you the clean, stable power delivery that makes surge protection actually effective — a noisy or underpowered PSU adds its own instability on top of grid problems.
The steps
1. Check your PSU rating and headroom
A gaming PC drawing close to its PSU's maximum capacity has less tolerance for voltage swings. If your rig runs an RTX 5070 Ti or higher, you want at least 20% headroom above your peak draw — an 850W unit comfortably covers most single-GPU 2026 builds including RTX 5080 setups. Undersized PSUs are more likely to trip or degrade under repeated surge events, even small ones. Common mistake: buying a PSU rated exactly at your GPU's minimum spec, leaving zero buffer for transient spikes.
2. Choose a UPS over a basic power strip
A surge protector only clamps voltage spikes — it does nothing during a brownout or full outage. A UPS with AVR keeps your PC running through short dips and gives you 5-10 minutes of runtime to save your work and shut down safely during a full blackout. For a single gaming PC and monitor, a 600VA-1000VA UPS is the typical starting point. Common mistake: assuming a power strip labeled "surge protector" offers the same protection as a UPS — it doesn't hold voltage steady, it only cuts spikes.
3. Plug the PC and monitor into the same protected circuit

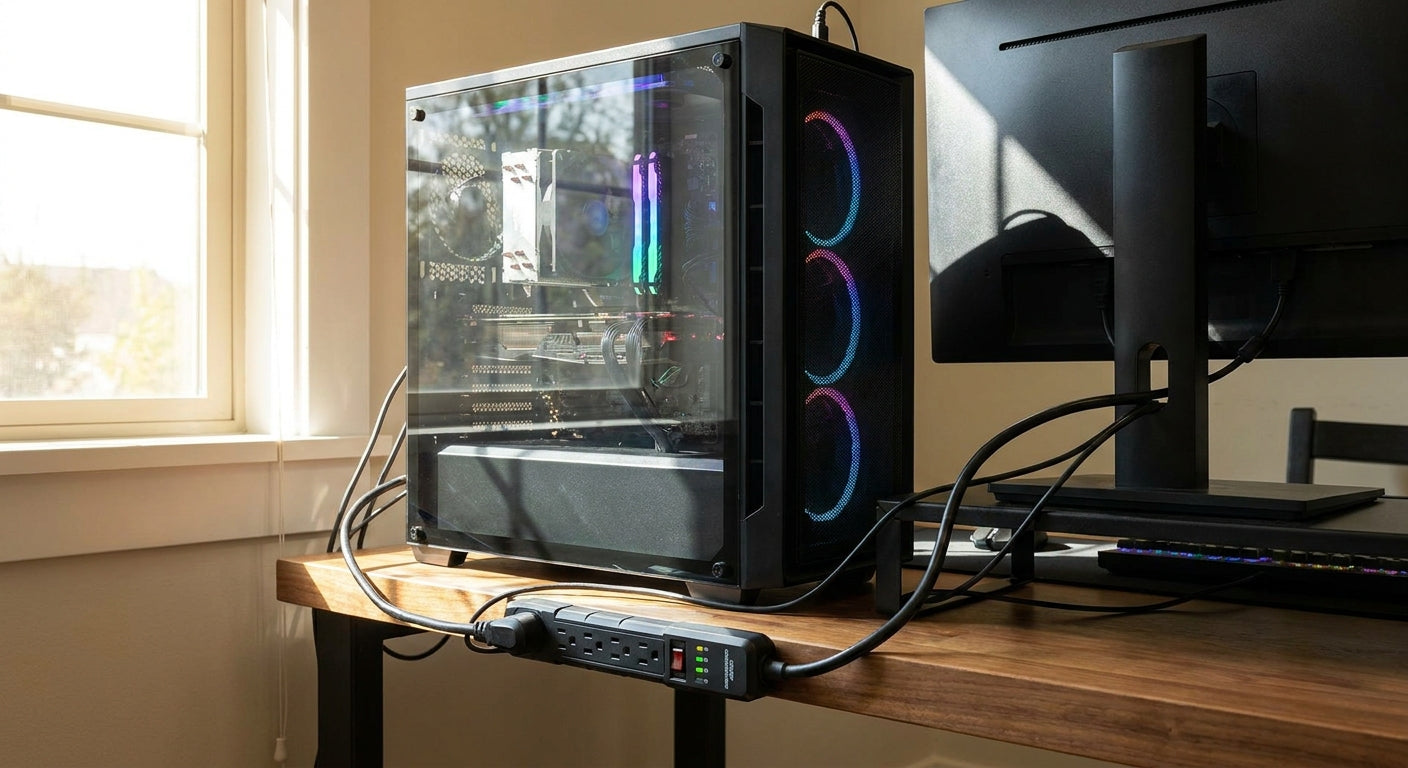

If your PC is surge-protected but your monitor isn't, a surge can still travel through the HDMI or DisplayPort cable and damage your GPU's display output. Run both the tower and the monitor off the same UPS or surge strip. Common mistake: protecting the tower but leaving the monitor on a separate, unprotected wall socket.
4. Separate your gaming PC from high-draw appliances
Aircon units, water heaters and washing machines on the same circuit create voltage noise every time they cycle on and off. In most HDB flats and condos, this shared-circuit noise is a bigger day-to-day risk than lightning. Where possible, run your gaming setup off a dedicated socket or circuit. Common mistake: sharing a multi-socket extension between your PC and a kettle or aircon unit.
5. Test the surge protector's indicator light
Most surge protectors and UPS units have a status LED that shows whether the surge suppression component is still active. A protector that's absorbed a major spike may show no visible damage but stop protecting entirely — the indicator light is the only way to know. Check it monthly, especially after a thunderstorm season. Common mistake: assuming a surge protector still works because the power strip itself still turns devices on.
6. Unplug during extended outages or storms
When Singapore's National Environment Agency issues a lightning warning and you're not actively using the PC, unplugging it entirely is still the safest option — no surge protector guarantees 100% protection against a direct or near-direct lightning strike. This takes 10 seconds and eliminates the risk completely. Common mistake: relying on surge protection alone during severe storm warnings instead of just pulling the plug.
7. Schedule a replacement cycle for your surge protector
Surge protectors have a finite lifespan — every spike they absorb uses up part of their protective capacity, and there's no warning before they stop working. Replace basic surge strips every 2-3 years even if they look fine. Common mistake: keeping the same surge protector for 5+ years because it's never "failed" visibly.
Troubleshooting
- PC won't turn on after a storm — check the PSU's built-in fuse first; a blown fuse is common and cheaper to diagnose than assuming GPU failure.
- UPS beeps constantly — this usually signals the battery is degraded or the load exceeds its rated capacity; check your UPS's VA rating against your PSU wattage.
- Monitor shows no signal after a power event — test the monitor on a different PC before assuming the GPU's display output failed.
- Surge protector trips repeatedly — this points to a wiring issue or an overloaded circuit, not a faulty protector; get an electrician to check the socket.
- PC restarts randomly during storms — this suggests brownout-level voltage drops rather than surges; a UPS with AVR fixes this where a basic surge strip won't.
- Warranty claim rejected after surge damage — most manufacturer warranties exclude damage from electrical events; check how to extend the warranty coverage on your gaming pc for what's covered before you file a claim.
Tools and resources
- An 850W 80+ Gold modular PSU for stable, clean power delivery
- A UPS rated 600VA-1000VA for single-PC setups
- A plug-in voltage tester for diagnosing circuit issues before they damage hardware
- The full power supply buying guide if you're unsure what wattage your build needs
“A surge protector only clamps spikes — it does nothing during a brownout, which is why a UPS with AVR matters more for day-to-day gaming pc surge protection.”
What to do next
Once surge protection is sorted, look at your overall power setup — running a high-draw GPU in a small HDB room compounds heat and circuit load together. The guide on lowering gaming pc electricity costs in an hdb flat covers circuit load and power draw side by side, which matters if you're running an RTX 5090 or RTX 5080 build on an older flat's wiring.
FAQ
What's the best gaming pc surge protection for Singapore homes?
A UPS with AVR rated 600VA-1000VA is the best gaming pc surge protection for most single-PC setups in Singapore, since it handles both surges and brownouts from grid switching. A basic surge strip rated 1,000+ joules is the minimum acceptable option if a UPS isn't in budget.
Is a UPS better than a surge protector for a gaming PC?
Yes, a UPS is better because it holds voltage steady during brownouts and gives you runtime during outages, while a surge protector only clamps voltage spikes. For a gaming PC with an RTX 5080 or RTX 5090, the extra protection is worth the higher upfront cost.
How much does gaming pc surge protection cost in 2026?
Basic surge protectors start cheap while UPS units with AVR cost more depending on VA rating and runtime — check current pricing for your specific wattage needs since PSU size affects which UPS capacity you need.
Can a power surge damage a graphics card specifically?
Yes, a power surge can damage a GPU directly through the PCIe power connectors or indirectly through the display cable if a monitor on the same circuit takes the hit first. High-wattage GPUs like the RTX 5090 are more exposed since they draw more current under load.
Does a 5 Years Limited Warranty cover surge damage?
Most manufacturer warranties, including standard limited warranties, exclude damage caused by electrical events like power surges or lightning strikes. Check the specific warranty terms on your build before assuming surge damage is covered.
How often should I replace a surge protector?
Replace a basic surge protector every 2-3 years since it absorbs spike damage silently with no visible warning before it stops protecting. A UPS's battery typically needs replacement every 3-5 years depending on usage.
Do I need surge protection if I already have a good PSU?
Yes, a good PSU like an 850W 80+ Gold unit handles clean power delivery but isn't designed to absorb a major grid or lightning-induced surge on its own. Surge protection and a quality PSU work together, not as substitutes for each other.
Should I unplug my gaming PC during a thunderstorm?
Yes, unplugging is the safest option during a severe lightning warning even with surge protection in place, since no surge protector guarantees full protection against a direct or near-direct strike. It takes seconds and removes the risk entirely.
One last thing
Most gamers protect the PC tower and forget the monitor — but a surge traveling through an unprotected HDMI cable can just as easily kill a GPU's display output as one hitting the PSU directly. Run every screen on the same protected circuit as the tower, every time.
